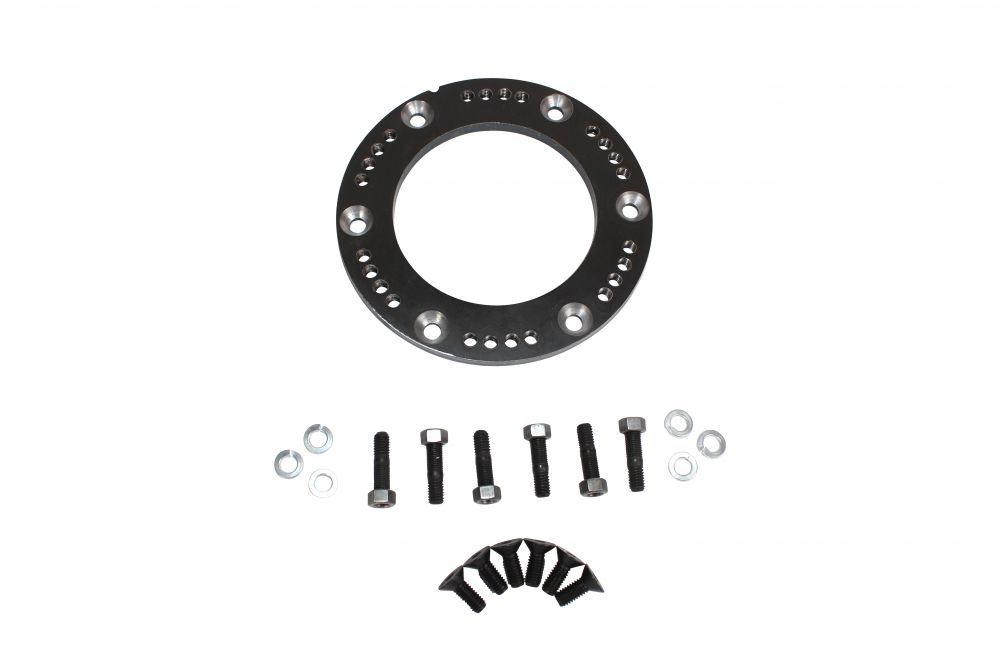

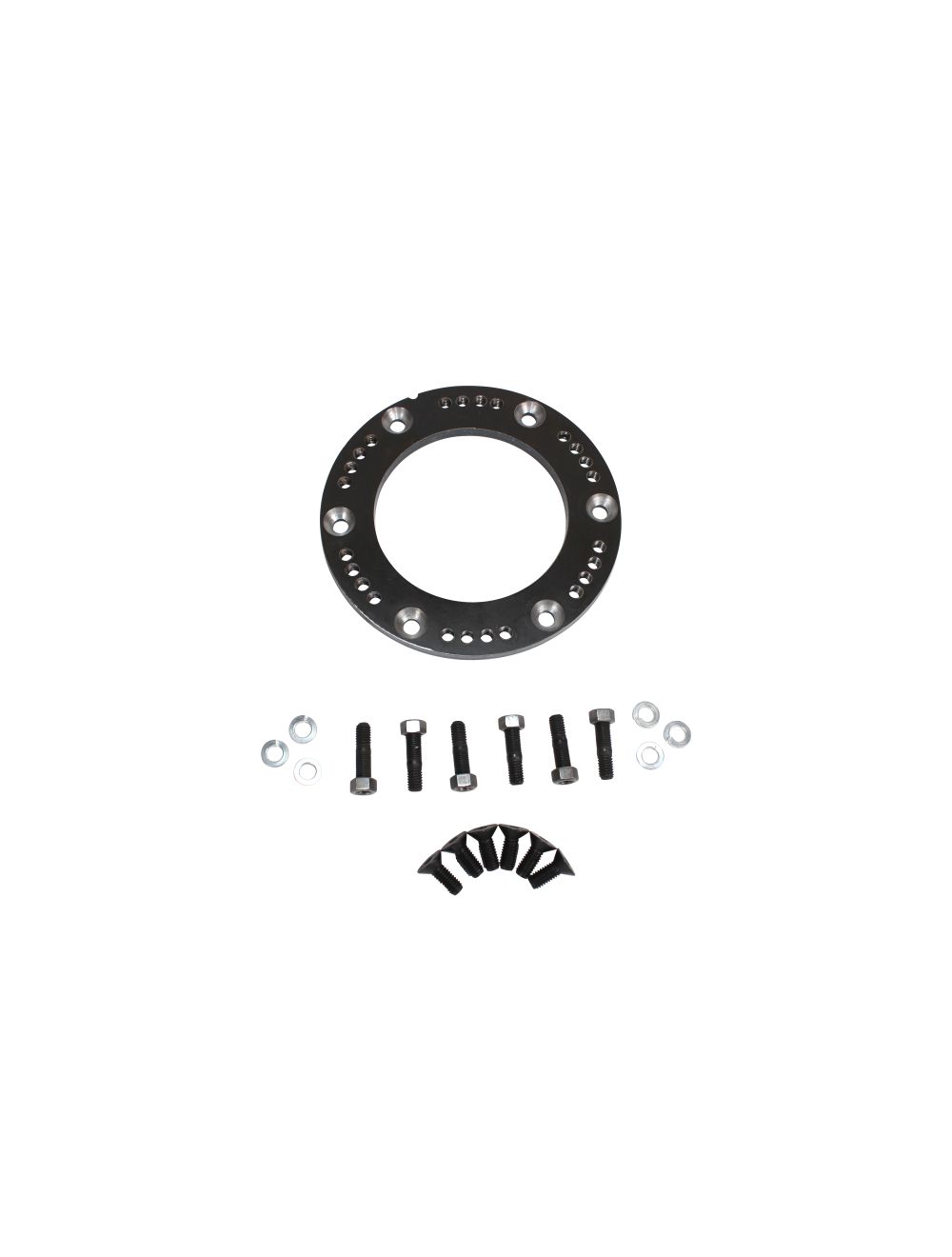

6 Bolt Clocking Ring to Rotate Passenger Drop T-Case Up or Driver's Drop T-case Down, 8 degree increments
6 Bolt Clocking Ring to Rotate Passenger Drop T-Case Up or Driver's Drop T-case Down, 8 degree increments
$135.00
SKU
U4024-B
Rotate passenger's drop t-case up or driver's drop t-case down.
Our clocking rings allow you to rotate your transfer case up for higher belly clearance or down for better angle on your front driveshaft. Be aware of transmission to front driveshaft clearance if clocking the t-case down.
Our clocking rings work with any transfer case with a 6 bolt round pattern on the front of it.
They do not work with figure 8 style, '84 and older Chevy NP205's.
Our clocking rings will rotate your transfer case 16, 24, 32 or 40 degrees depending on where you install the studs.
Clocking ring is 3/8" thick
For GM 6 bolt pattern
