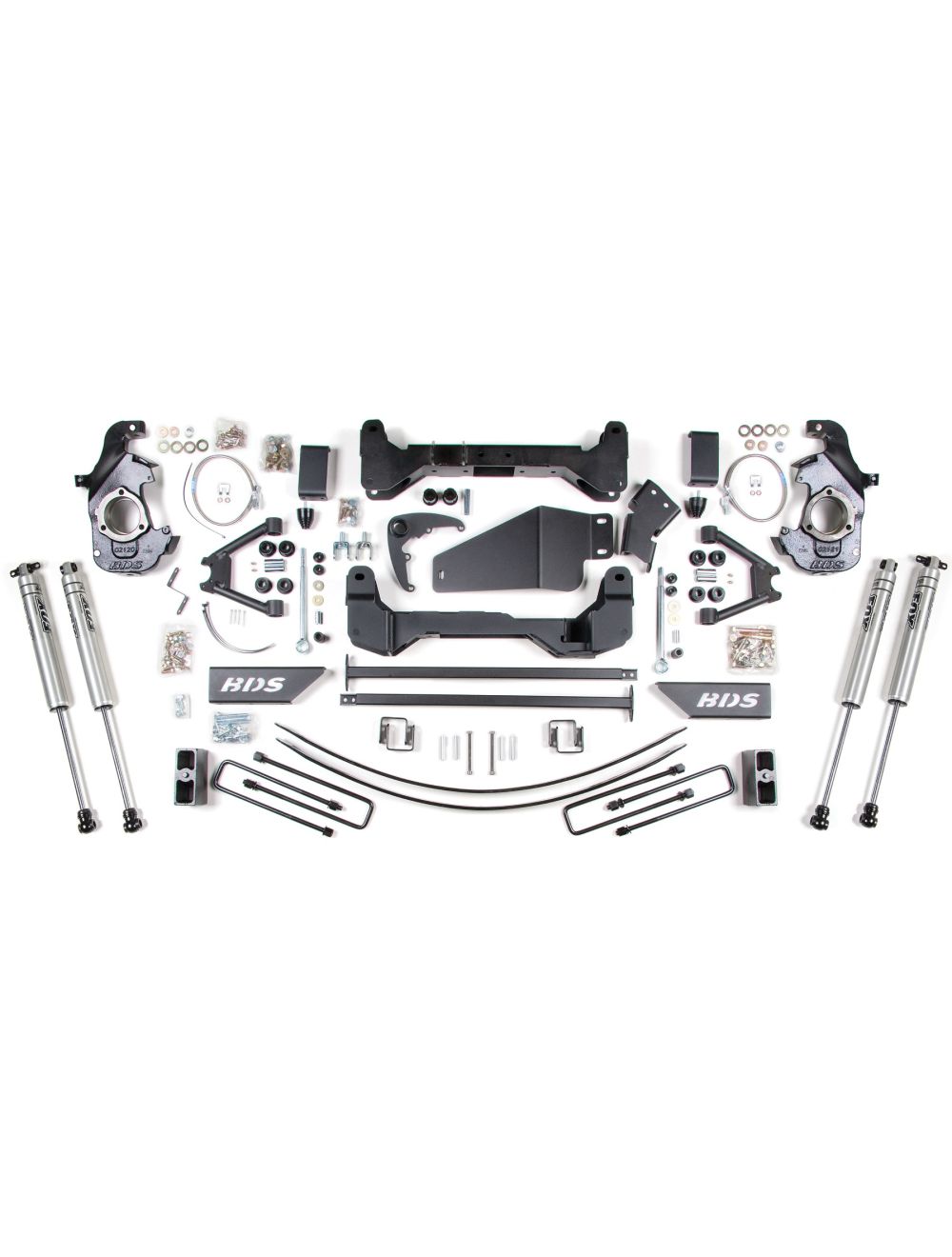

BDS IFS 6" Lift Kit for 1988-1998 Chevy/GM 1/2 & 3/4 Ton 4wd 6 Lug Trucks

This tightly engineered 6" suspension lift kit is designed around two heavy duty upper A-arms, one-piece 1/4" laser cut high clearance crossmembers and replacement steering knuckles. This combination offers zero track width change unlike many knuckle kits on the market.

The high clearance crossmembers increase ground clearance for off road performance while compression struts support the crossmembers under impact. This lift kit also includes replacement steering knuckles to maintain proper steering angles and ball joint angles, front stainless steel braided brake lines for optimum performance and ease of installation, plus a differential skid plate is included for off road protection.

Customize this 6" BDS suspension lift kit with upgrades like gas shocks, single or dual steering stabilizers, traction bars, rear stainless steel braided brake lines, and BDS Leaf Springs.

Tire & Wheel Combinations
35" x 12.50" w/15 x 8 and 3-5/8" back spacing
35" x 12.50" w/16 or 17 x 8 and 4-1/2" back spacing
35" x 12.50" w/20 x 9 and 5-1/4" back spacing
*Trimming may be required*

Est. Installation: 8 hours
Difficulty Level (easy 1 - 5 complicated): 4
View complete Vehicle Fitment Information on the product info tab.

Important Kit Notes
1. Requires exhaust modification.
2. Special tool (Kent Moore Tools Part #J-36202-A) required to unload/load torsion bars.
3. Requires frame bracket modification and differential mount modification.
4. Not recommended for long box extended cab models due to crossmember interference.
5. All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
6. Aftermarket wheels required.
7. System will not work on some '88-'95 vehicles equipped with spindle mounted front ABS sensor.
8. Traction bars will not work on regular cab, short box models.
