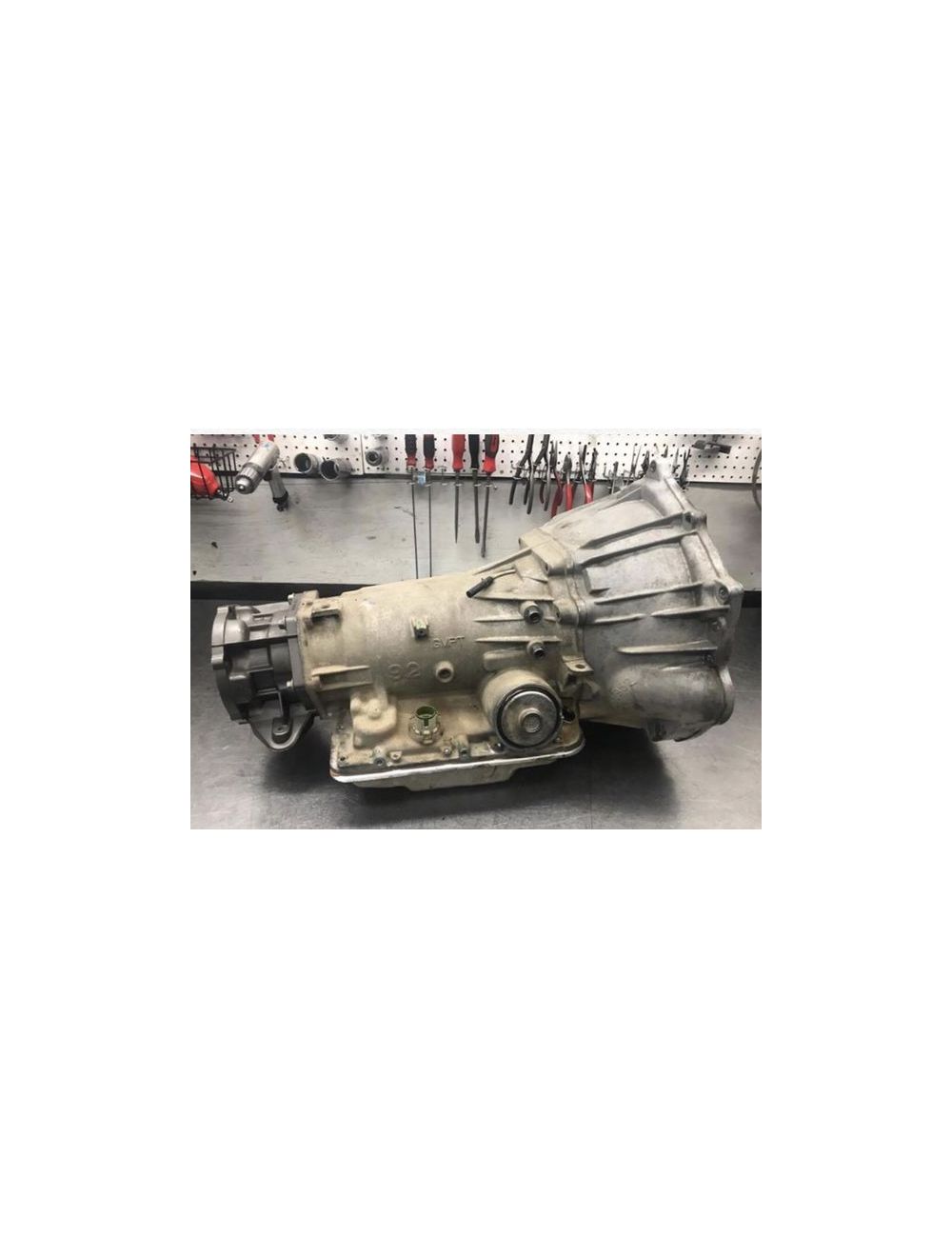

1996 and older 4x4 4l60e to small bearing fig 8 NP205

Grouped product items
Product Name	Qty
700R4/4L60E Short output shaft $195.93
700R4 spacer, 1-7/8 Inch with bolts $111.60
TH350/205 Adapter housing $298.56
Drive sleeve for TH350, 27 x 27 spline $97.02
NP205 Input gear for TH350 applications, 27 spline $155.00
Labor to Machine Customer's NP205 Speedometer Housing for GM VSS, Tone Wheel, Plug, Speed Sensor and Pigtail Included $220.00

Estimate Fees

Details

These parts only work on ~1996 and older transmissions with the four bolt tailhousing

Note: This will only work with small bearing input NP205 cases (10,23,27 spline input) Will not work with a large bearing case (29,31,and 32 inputs)

Some things on this list you may or may not need but it is easy to remove them.

The first option is either installing a shorter shaft in your transmission or using a spacer. The spacer is great if you dont want to tear down your transmission.

The next item is the adapter. This is needed to connect the transmission to the NP205

Now onto the Drive sleeve. This is used to connect the transmission output shaft (27 spline male) to the transfercase input shaft (also 27 spline male).

If you dont have a 27 spline male input for your NP205 we have one listed on this page.

The last step is adding a VSS to the tailhousing of your NP205 to keep the transmission shifting properly
