Kingpin Dana 60 High Steer Upgrade Kit

Add High Steer to your crossover steering system!

As low as $449.00

Kingpin Dana 60 Axle Type For High Steer Upgrade

Knuckle Type for D60 High Steer Upgrade

Qty:

Estimate Fees

Details

Always bending your tie rod on rocks? Well, it's time to upgrade to High Steer!

High steer moves the tie rod from the stock location to the top of the knuckles out of harm’s way.

All the parts needed to convert your kingpin Dana 60 crossover to high steer.

These High Steer upgrades are designed to work with our 4-7" Kingpin Dana 60 crossover kits. These kits are using GM 1 ton TRE taper.

NOTE: High Steer CAN NOT be used if your axle has been moved forward from the stock location

Unfamiliar with steering terms? Check out this page

Our tie rods are cut to correct length and threaded. Our HD ends come installed.

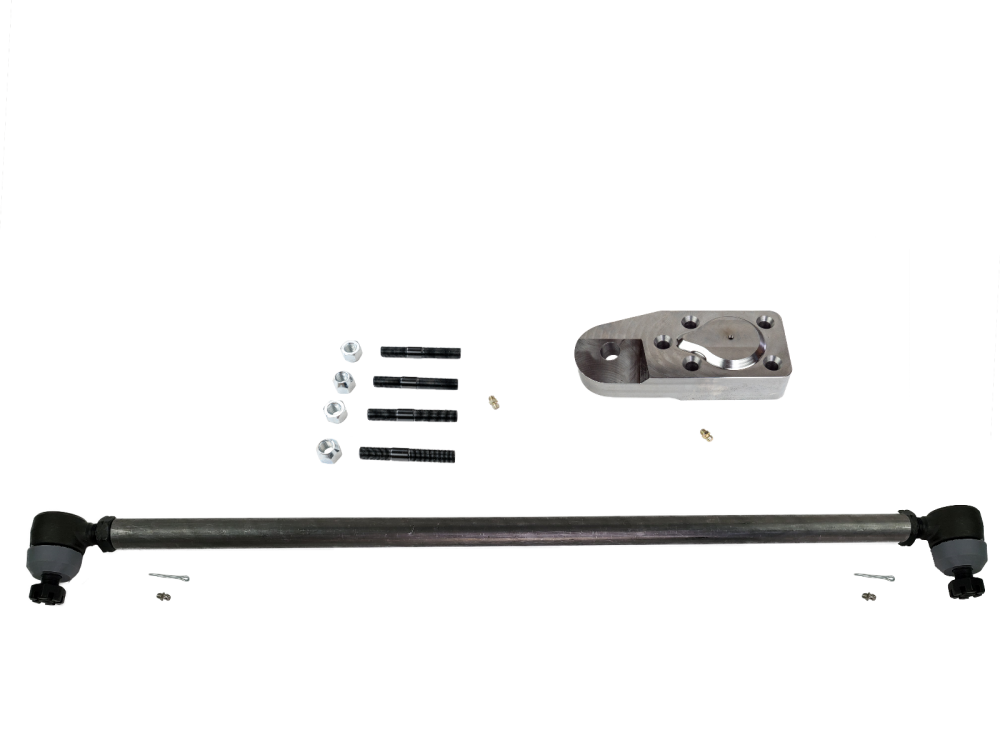

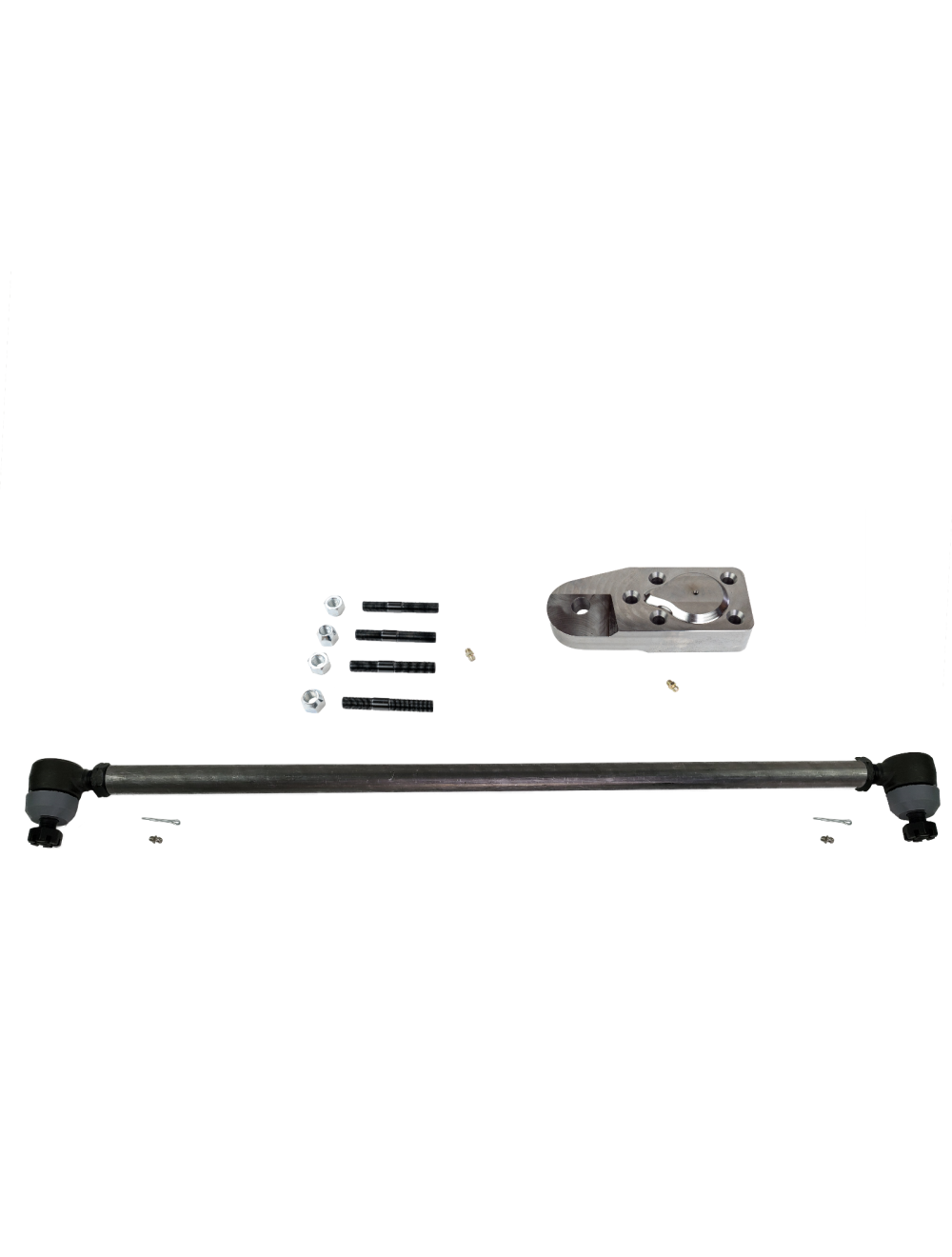

Kit Includes:

Cut to correct length 1.25" DOM High Steer tie rod with our HD Tie rod ends installed
ARP Studs with nuts (4 of each if orderd for stock knuckle, 5 if aftermarket)
High Steer Arm
(3)Grease Zerks
(2) Cotter pins
