Dodge Dana 60 Swap Kit for 67-87 Chevy For Superlift and Skyjacker Springs, Greasable Polyurethane Bushings
Dodge Dana 60 swap kit for '67-87 ('91) Chevy, for Superlift/Skyjacker springs Includes greasable bolts/bushings/sleeves/spacers.

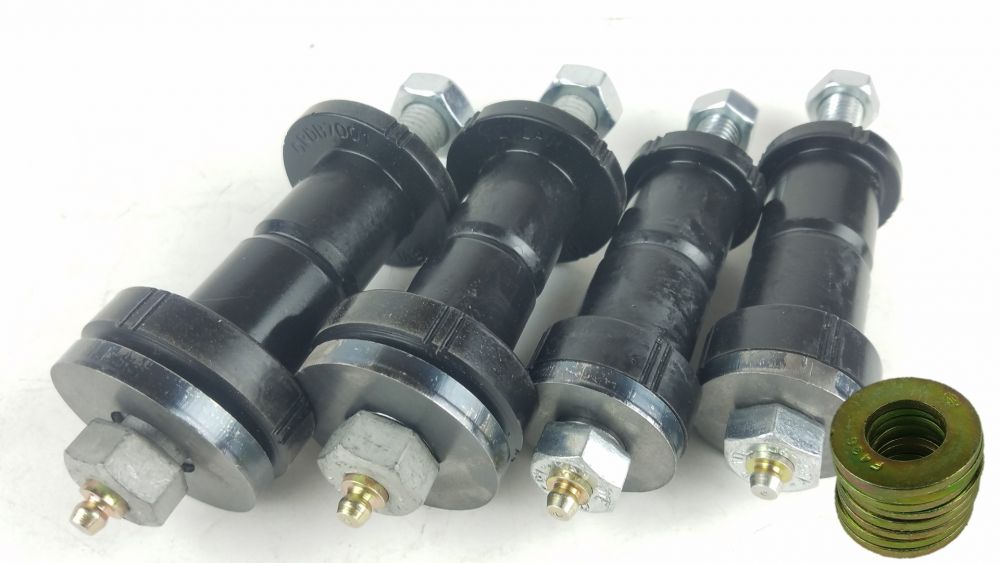

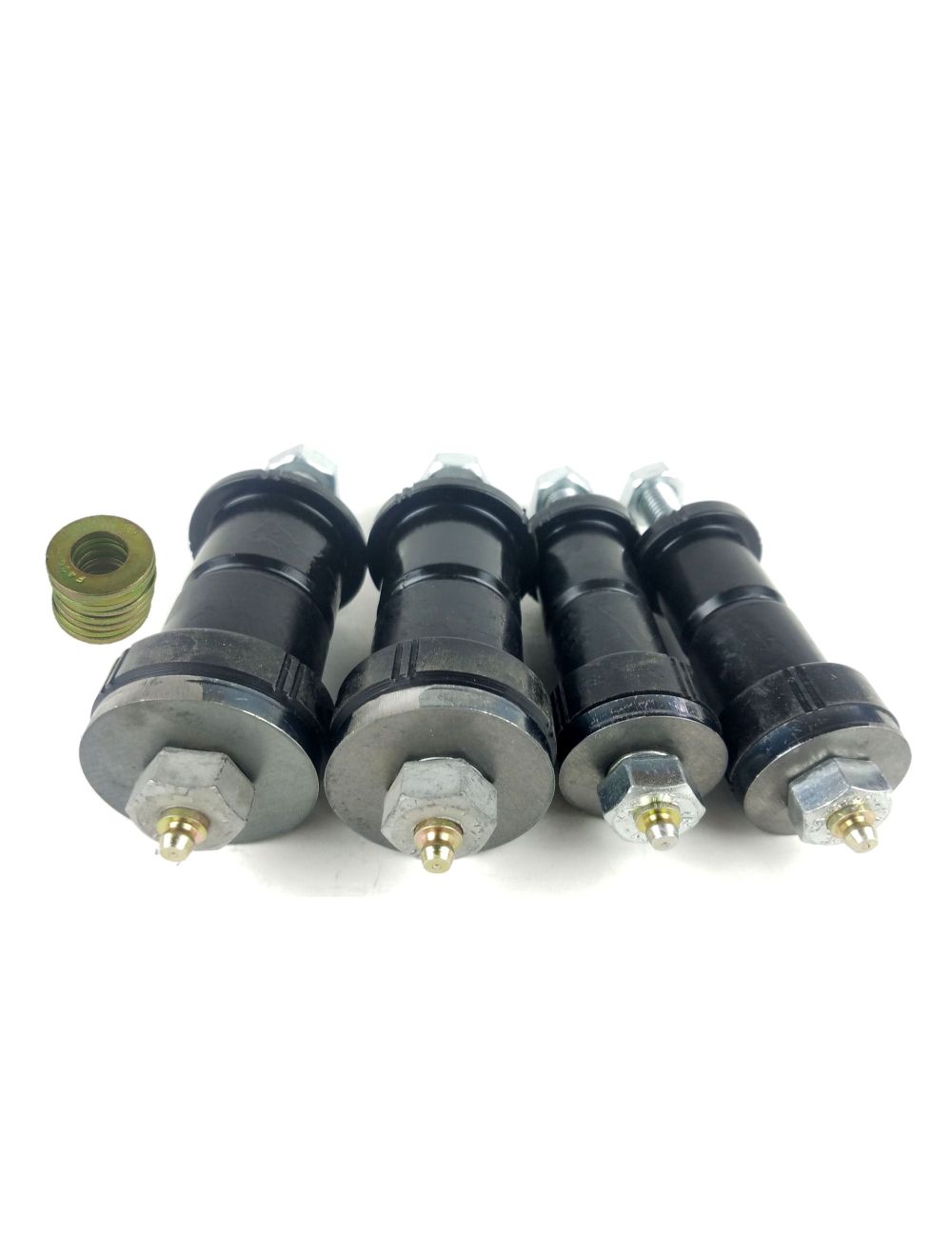

Greasable polyurethane front spring eye bushing kit for '67-87 K10/K20 pickup, '69-91 Blazer, '67-91 Suburban and '76-91 K30/V30 pickup. For aftermarket 2-1/2" wide (lifted) springs.
Includes bushings/sleeves/greasable bolts for both ends of both front springs. For 1-1/8" eyelet at both ends of front spring. Fits Superlift and Skyjacker springs.
Uses larger 1/2" bolt at the back, this will require ORD HD front shackles plates or drilling stock shackles for larger bolt.
For install the thick washer and thick shoulder bushing always face the motor. This helps offsetting to the wider dodge d60 perch.
(2) ORDB8002 Polyurethane Bushing Halves
(2) ORDB7001 Polyurethane Bushing Halves Trimmed down
(2) ORDB7001 Polyurethane Bushing Halves
(2) ORDB7005 Polyurethane Bushing Halves
(2) Large Spacers
(2) Small Spacers
(2) Greaseable DOM Sleeve 3.5" long for 9/16" Bolt
(2) Greaseable High Head better than Grade 8 Bolts with Top Lock Nut and larger shank grease zerk 9/16"-12x5"
(2) Greaseable DOM Sleeve 3.5" long for 1/2" Bolt
(3) Greaseable High Head better than Grade 8 Bolts with Top Lock Nut and larger shank grease zerk 1/2"-13x5"
(8) Hardened Washers
