HD Front Shackles with Dodge Dana 60 Swap Kit for 67-87 Chevy For Most Aftermarket Springs - Non-Greasable Kevlar Bushings

Non-Greasable front spring eye bushing kit and HD shackles for '67-87 K10/K20 pickup, '69-91 Blazer, '67-91 Suburban and '76-91 K30/V30 pickup. For aftermarket 2-1/2" wide (lifted) springs.

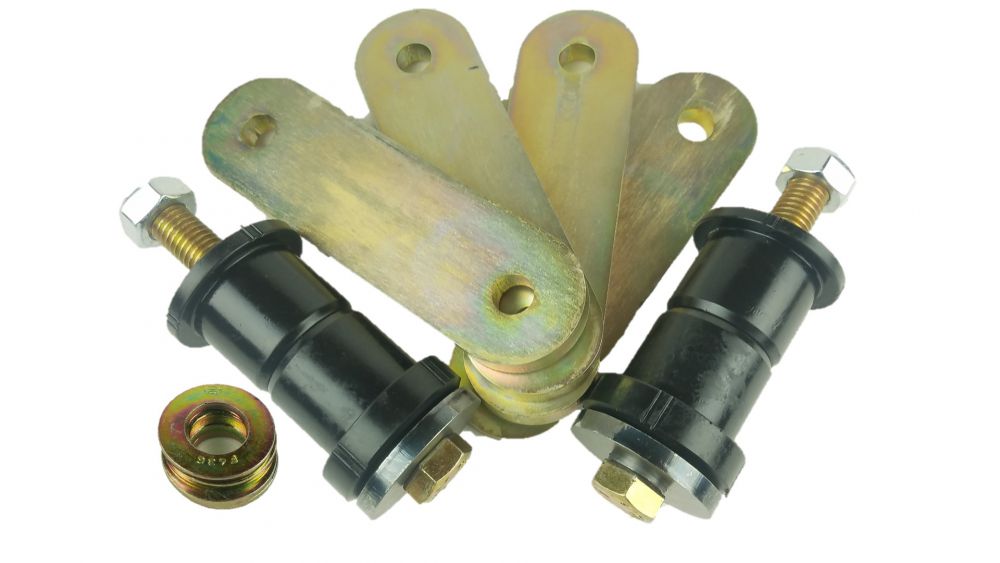

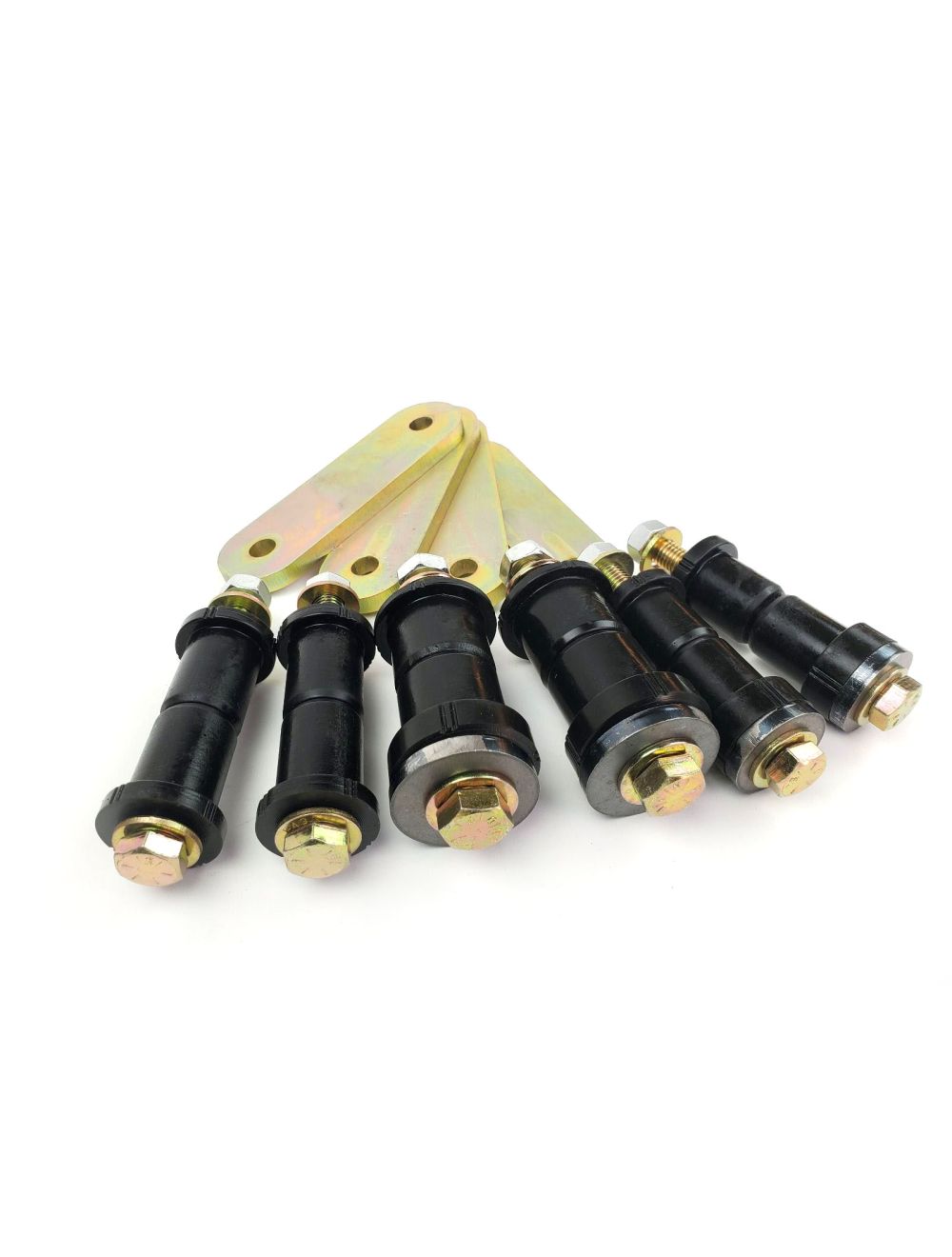

Includes Kevlar bushings/sleeves/bolts for both ends of both front springs plus ORD HD greasable shackles and the bushings/sleeve/bolts for the shackle hanger. For 1-1/2" eyelet at front of front spring, 1-1/8" eyelet at back of front spring. Fits all aftermarket springs except Superlift and Skyjacker.

'93 and older Dodge Dana 60's, have spring pads that are 1/2" wider than GM solid axles, this special bushing kit offset the springs to make everything line up.

Uses larger 1/2" bolt at the back, this will require ORD HD front shackles plates or drilling stock shackles for larger bolt.

We've implemented new Kevlar infused polyurethane bushings into our entire lineup, any of our products with suspension bushings in them will now have the best bushings available!

Infusing Kevlar into polyurethane doubles the tensile strength, tear resistance, and increases the life of the part by cross linking the polyurethane. We elected to keep the same durometer (stiffness) so as not to inhibit suspension travel, as well as keeping the black color everyone is used to. Basically with double the tensile strength, the bushing can be pushed harder and still come back to it's original shape. All of that means using your truck more and maintaining it less, and reduces the cost of replacing bushings!

Due to its wide range of elastomeric properties and strength factors, Kevlar Infused polyurethane out handles, out preforms, and outlasts other similar polyurethane materials on the market.

We also added chamfers to make bushing install easier!

For install the thick washer and thick shoulder bushing always face the motor. This helps offsetting to the wider dodge d60 perch.
