HD Front Shackles with Dodge Dana 60 Swap Kit for 67-87 Chevy For Superlift and Skyjacker Springs - Greasable Polyurethane Bushings

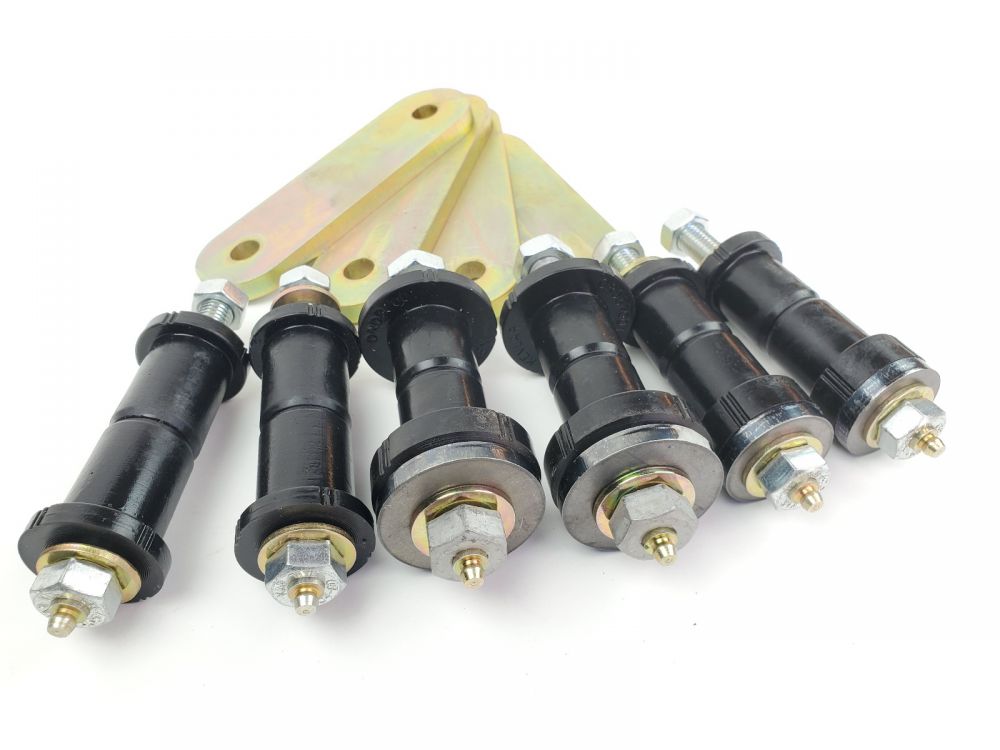

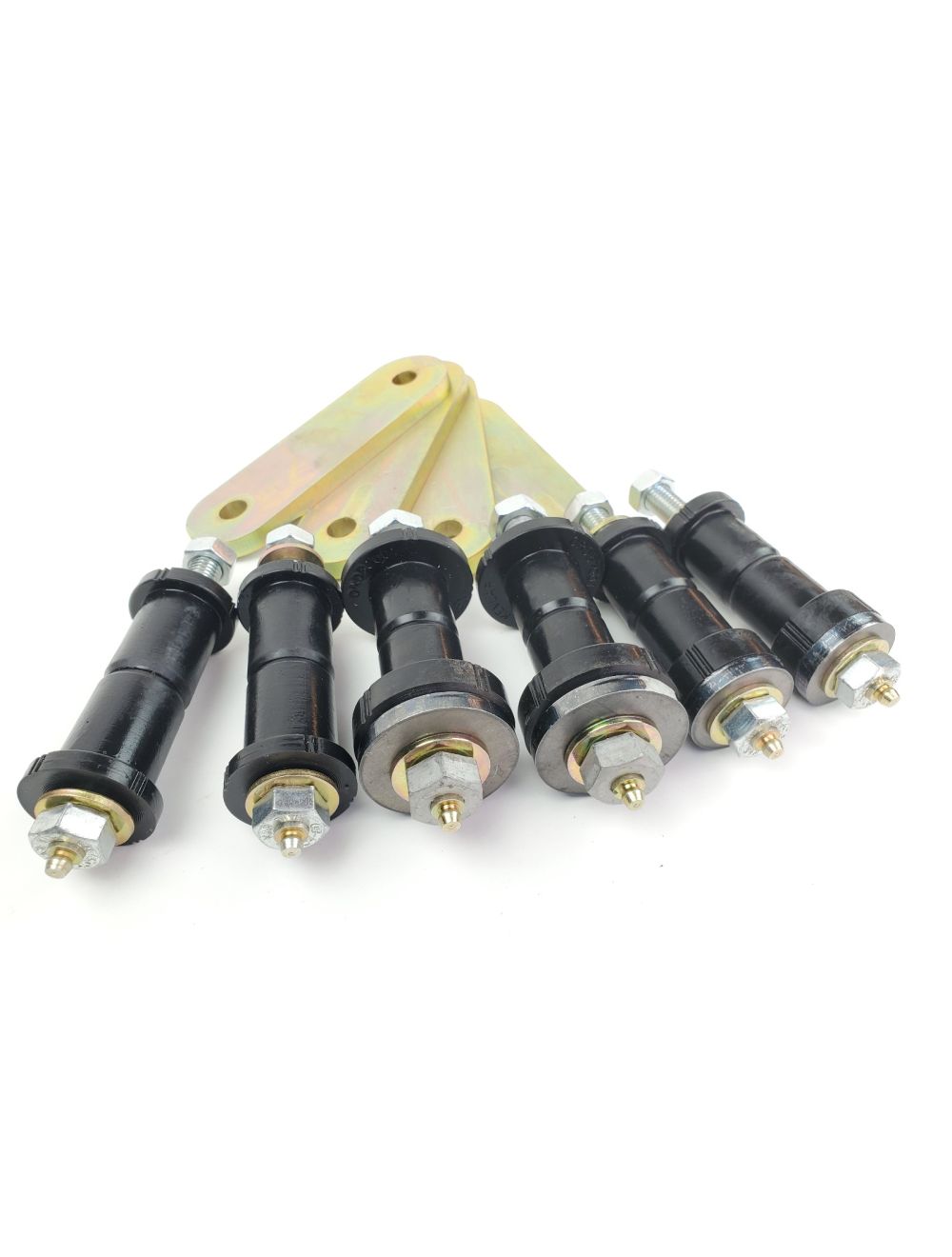

HD front shackles with Dodge Dana 60 swap kit for '67-87 ('91) Chevy, for Superlift/Skyjacker springs Includes HD shackles, greasable bolts/polyurethane bushings/sleeves/spacers for both sides of the truck
Greasable polyurethane front spring eye bushing kit and HD shackles for '67-87 K10/K20 pickup, '69-91 Blazer, '67-91 Suburban and '76-91 K30/V30 pickup. For aftermarket 2-1/2" wide (lifted) springs.
Includes bushings/sleeves/greasable bolts for both ends of both front springs plus ORD HD greasable shackles and the bushings/sleeves/bolts for the shackle hanger. For 1-1/8" eyelet at both ends of front spring. Fits Superlift and Skyjacker springs.
Uses larger 1/2" bolt at the back, this will require ORD HD front shackles plates or drilling stock shackles for larger bolt.
For install the thick washer and thick shoulder bushing always face the motor. This helps offsetting to the wider dodge d60 perch.
(4) 4.5" Shackle Plates
(2) Cut Down ORDB7001 Polyurethane Bushing
(2) Cut Down ORDB7005 Polyurethane Bushing
(2) ORDB7001 Polyurethane Bushing
(2) ORDB7005 Polyurethane Bushing
(4) ORDB7006 Polyurethane Bushing
(2) Large Spacers
(2) Small Spacers
(2) GU37101 - Greaseable DOM Sleeve 3.5" long for 9/16" bolt
(2) GU37151 - Greaseable High Head better than grade 8 bolt with top lock nut and larger shank grease zerk 9/16"-12 x 5"
(4) GU37100 - Greaseable DOM Sleeve 3.5" long for 1/2" bolt
(4) GU37150 - Greaseable High Head better than grade 8 bolt with top lock nut and larger shank grease zerk 1/2"-13 x 5"
