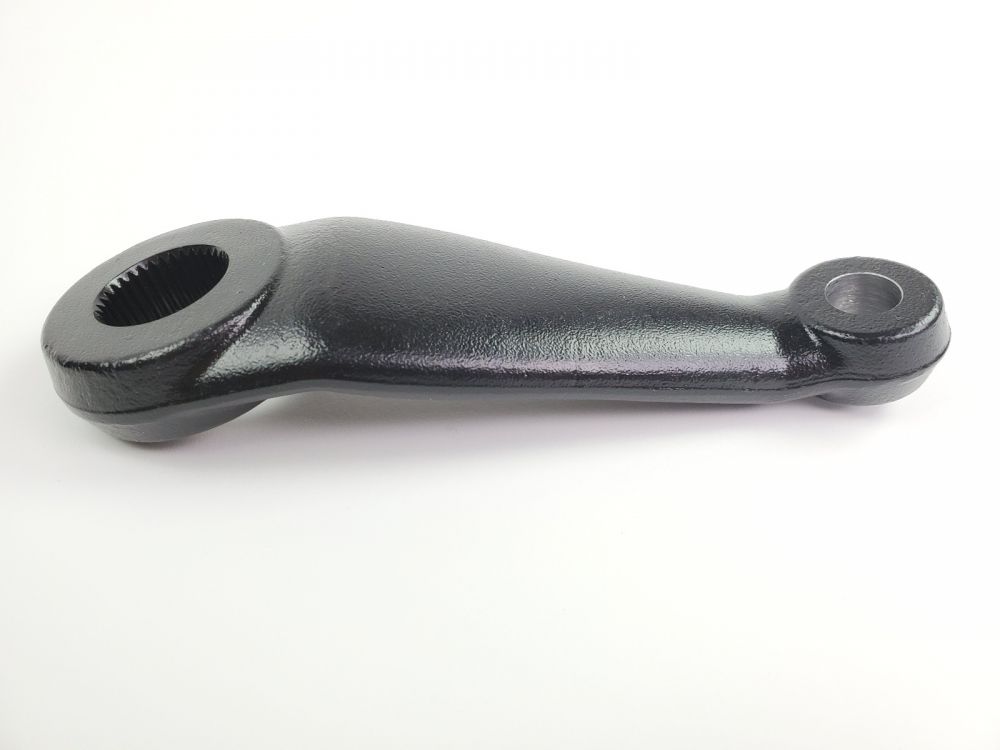

High Clearance Pitman Arm for Crossover Steering / drilled for OE type GM draglink end taper (i.e. ES2026 or ES2027)
Pitman arms for crossover steering.
This is the arm attached to the steering box shaft.
6-1/2" Hole to hole.
No index splines.
Fits full spline Saginaw power steering boxes.
The high clearance pitman arm is designed to hug the frame as close as possible. Sometimes the end needs to be trimmed down to clear the frame. This can be done with a cuttoff wheel. If you have the steering box frame plate it may require more trimming.
GM tie rod end taper is ~.660” on the small side and ~.755” on the large side. This matches up with our U9016-NP tie rod ends as well as ES2010R/L and ES2234.
DLE taper is ~.700” on the small side and ~.787” on the large side. It's the same 7 degree (or 1-1/2" per ft.) taper as the GM tie rod ends, but reamed deeper. This matches up with ES2026R and ES2027L, the stock push/pull GM draglink ends.
