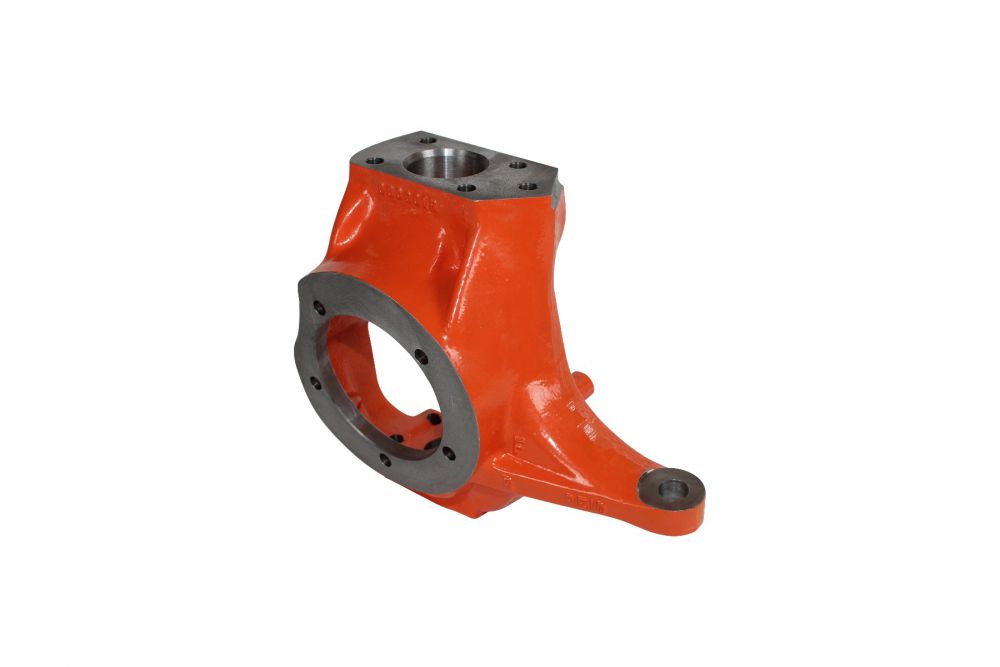

Reid Racing Knuckle for Kingpin Ford Dana 60, RH Side - Orange Powdercoat
Orange Powdercoat.
Fits Dodge D60 if used in pairs, the Dodge tie rod arm is at a slightly different height than the GM so using one OE knuckle and one Reid knuckle on a Dodge D60 leaves the tie rod at an angle.
The strongest Dana 60 knuckles on the market!
Cast from high strength ductile iron.
Beefed up with extra material and ribbing.
100% interchangeable with a Chevy kingpin knuckle.
5th bolt hole for high steer arms (4 bolt arms still fit).
Cast in steering stop eliminates bent stop bolts.
Tapered tie rod hole for 1 ton ends.
Tie rod holes can be drilled to accept 3/4" rod end.
Fully machined and ready for installation.
*** With Reid Knuckles you can utilize an extra stud for more strength! To order the extra stud click on the link below***
For No Block:
https://www.offroaddesign.com/dana-60-individual-steering-arm-stud.html
For 2.25” and 2.5” Block
