'81-91 K30 Rear Suspension Main Eye Hanger

'81-91 K30 Rear Suspension Main Eye Hanger

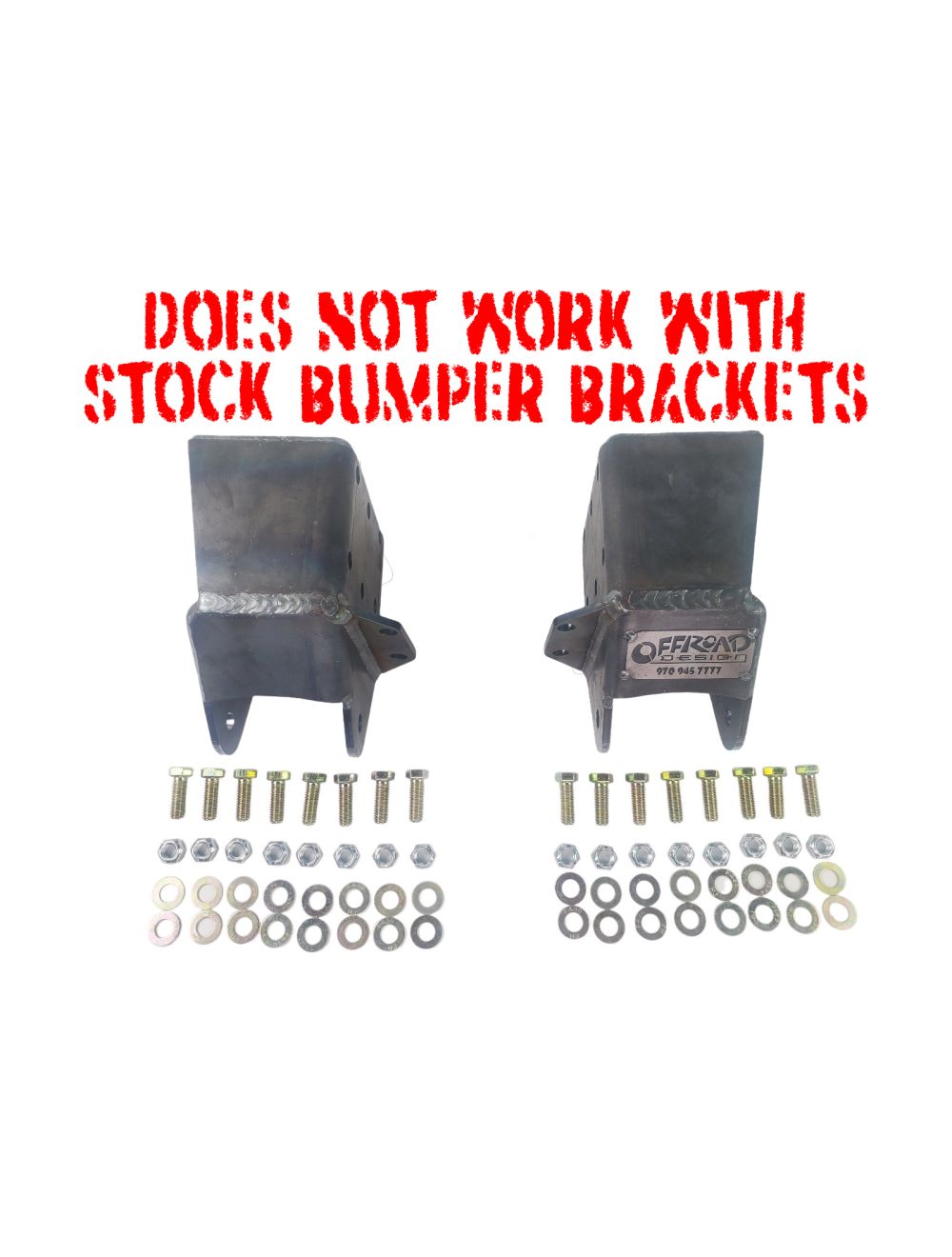

Replacement HD Front Main Eye Spring Hangers for '81-87 ('91) GM 4WD Trucks, Pair

Replacement HD Main Eye Spring Hangers for '81-87 ('91) GM 4WD Trucks, Pair

NOTE: Does not work with stock bumper bracket

$195.00
SKU
GU37030
Estimate Fees

Replace those old worn out Main eye hangers with a HD unit!

Over time the main eye hangers can get ovaled out, bashed on rocks, or just plain rusted through. These new brackets bolt into the stock location and allow you to use the same bushing width as you do now.

Built to last, they are designed to take a beating for many years to come.

Comes as a one-piece unit with integrated core support mount for extra strength!

Puts everything in the stock location

Bracket is stock height



To install:

  • Put your truck securely on jack stands
  • Remove front springs from your stock main eye bracket
  • Unbolt core support body mounts
  • Knock out the rivets holding your stock bracket (this can be done with a grinder, chisel, or plasma)
  • Bolt in the new HD units with supplied hardware in the stock rivet holes (due to the variations in frames some holes may need to be reamed out)
  • Reassemble and enjoy your new HD front brackets



    **Ships bare steel**





Comes with

(2) Front brackets

(1) Bolt kit

Icon Label Description Type Size Download
pdf HD Leaf Spring Main Eye Brackets pdf 535.7 KB Download
