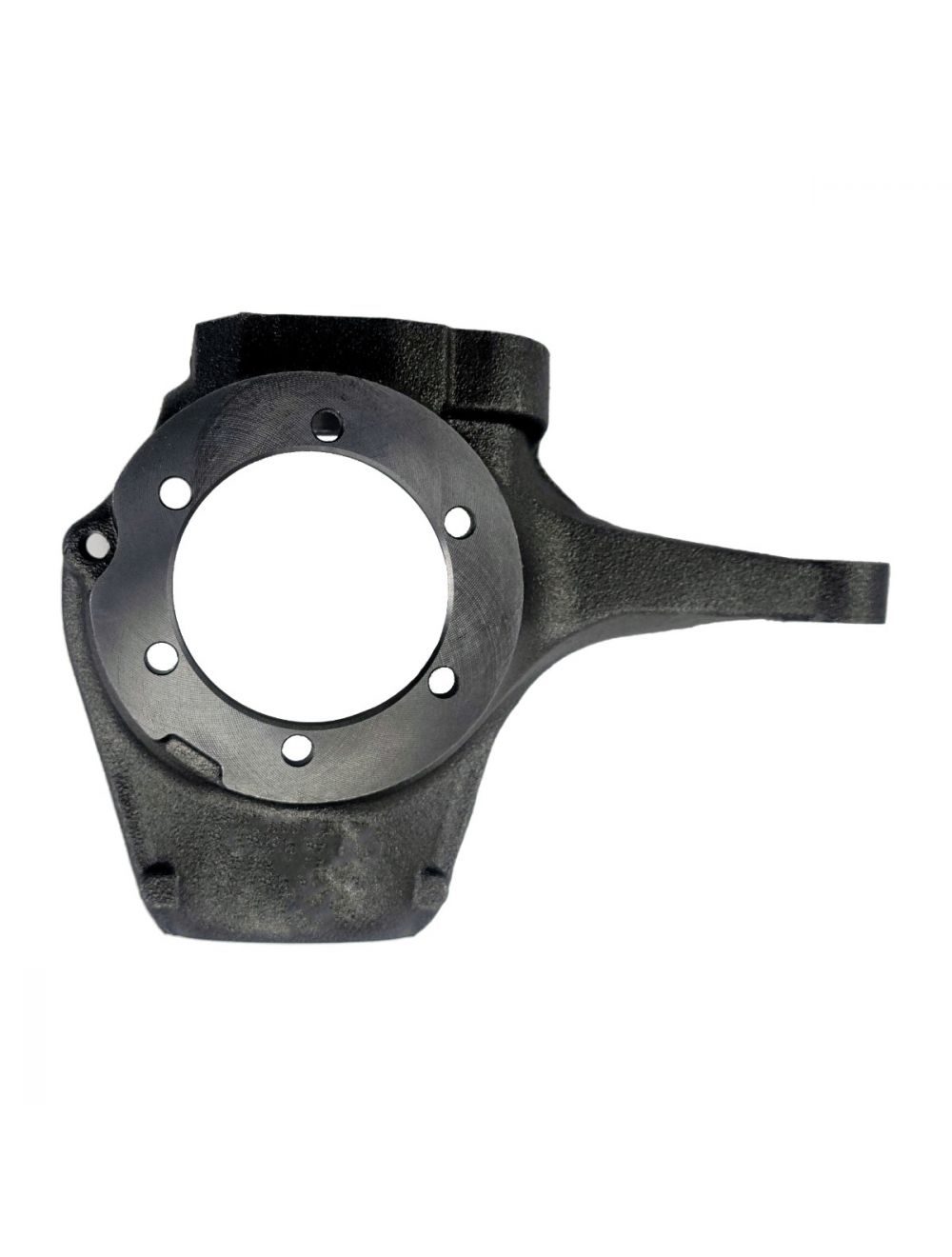

Spicer 10B/ Late D44 Passenger Side Knuckle, Nut Up

Spicer GM10B / Late D44 Passenger Side Knuckle, Nut Up

Set your axle up for crossover steering with a high quality Spicer brand knuckle at a pretty reasonable price!

This is a key part of a crossover steering conversion on a truck with the later GM D44 or Corporate 10 bolt front axle.  Spicer built it already machined flat and drilled and tapped so it's ready to bolt our steering arm on top.

Key fitment details:
This is built to mimic the later GM D44 and Corporate 10 bolt 8.5" passenger side knuckle and works on BOTH 1/2T and 3/4T axles.  "Later D44" in this case means D44 axles roughly from 1977 and newer.  The tierod will sit below the tierod arm so the retaining nut is on top of that arm.

This does NOT fit earlier (roughly '76 and older) D44 axles with the tierod on top of the knuckle arm.  For that you will need our Reid Racing knuckle D44-002CR found HERE

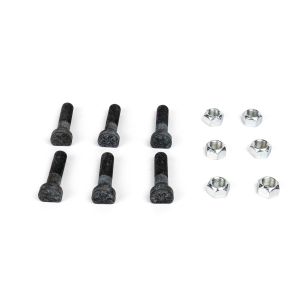

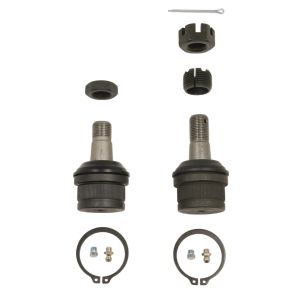

You will need to put ball joints and steering arm studs in the knuckle to complete the installation.  We carry those parts also.
