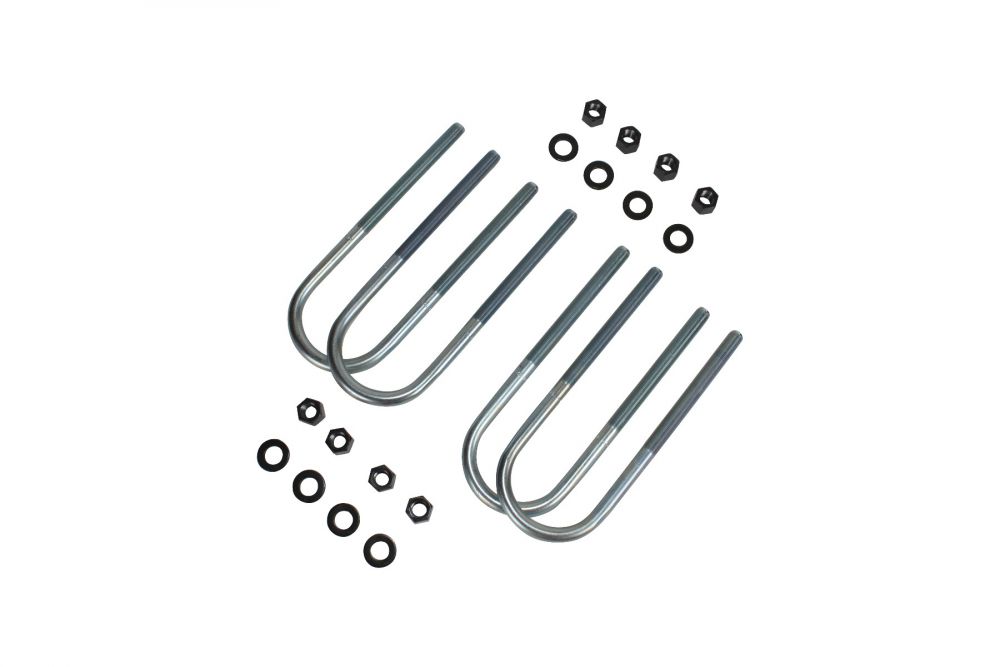

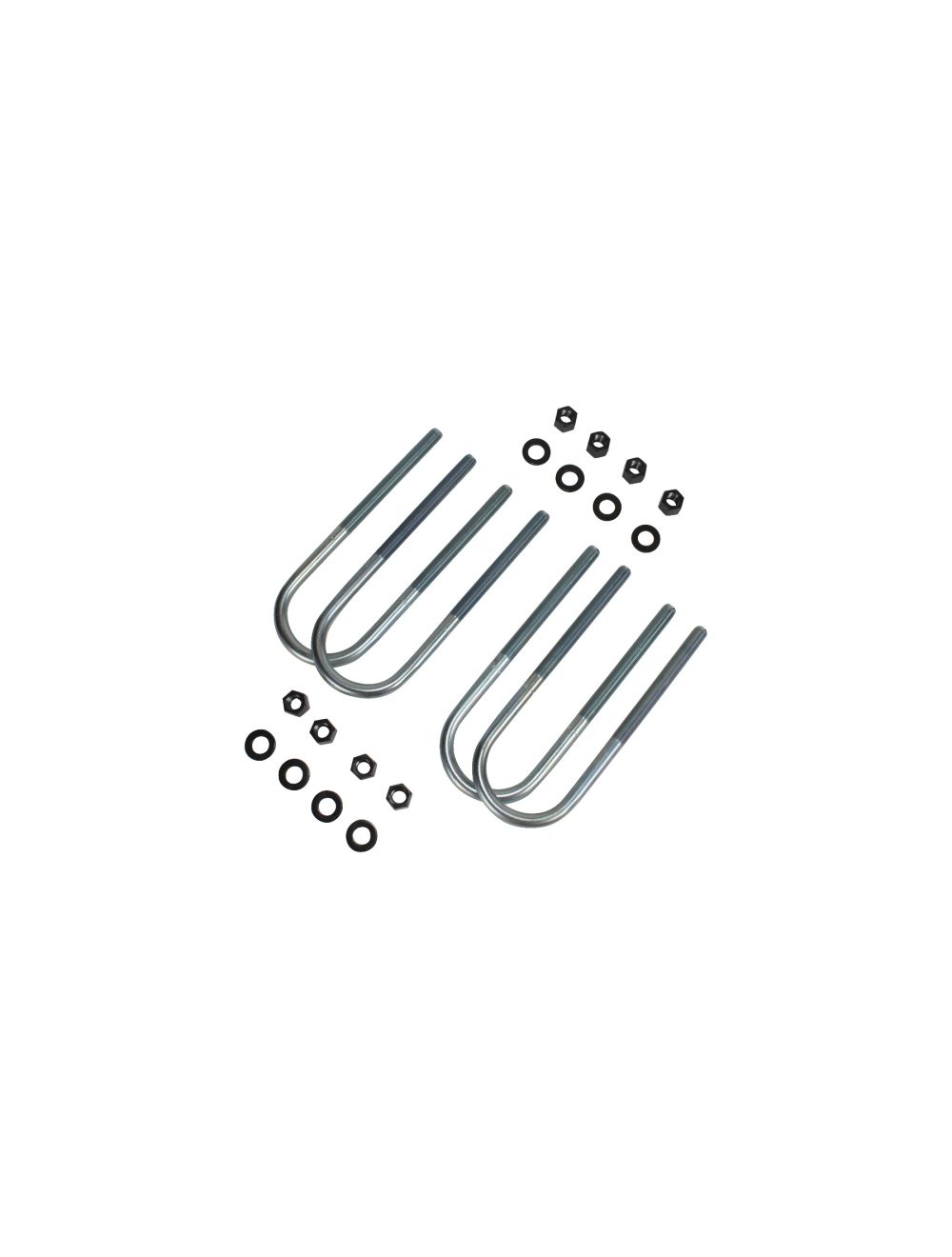

U-bolt kit for GM 3/4 and 1 ton 14 bolt, 9.5" SF or 10.5" FF, 11" long, if replacing square U-bolts also requires U-bolt plates U8023
Rear u-bolt kits, round.
6" of 5/8"-18 RH thread, you can cut off the ends if you have extra length.
Silver zinc plated.
Torque to 135 ft. lbs., check often.
As low as
$50.00
SKU
GU38152
'98 and older GM 10 and 12 bolt rear axles use 3" axle tubes.
'99+ GM 10 bolts and most Dana 60 rear axles use 3-1/8" axle tubes.
Most GM 9.5" and 10.5" 14 bolts have 3-3/8" axle tubes, we use 3-1/2" u-bolts for those applications.
Dana 70, 80 and AAM 11.5" rear axle tube diameters vary, best to measure on those applications.
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
U Bolt instructions | 178.2 KB | Download |
